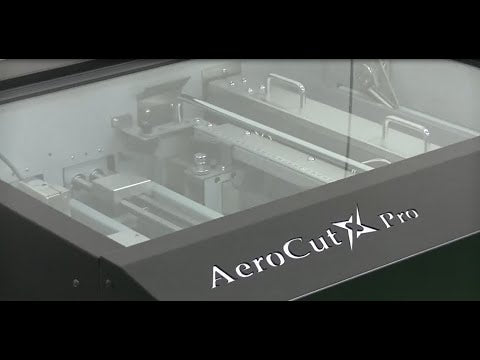

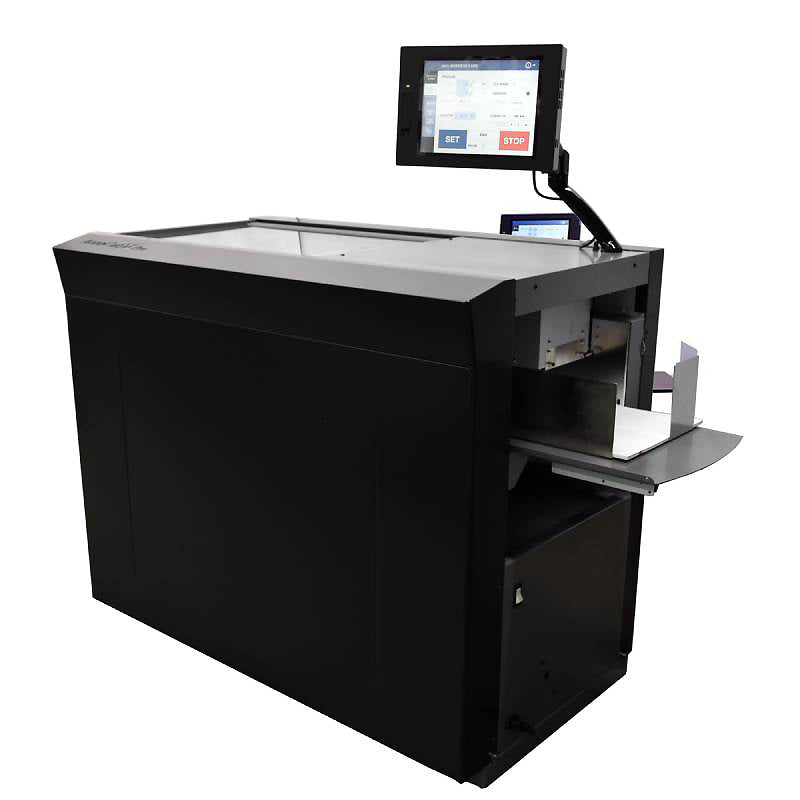

UCHIDA AeroCut X Pro Cutter, Creaser & Perforator

• Creasing Unit with five level creasing pressure adjustments
• Slitting and Cutting Units with self sharpening blades featuring two single blades to trim top/bottom margins of sheets and two double blades for bleed center gutters
• Feeding Unit that operates by tri-suction air with patented feeding mechanism to reduce misfeeds such as double feeds and prevent paper jams from occurring

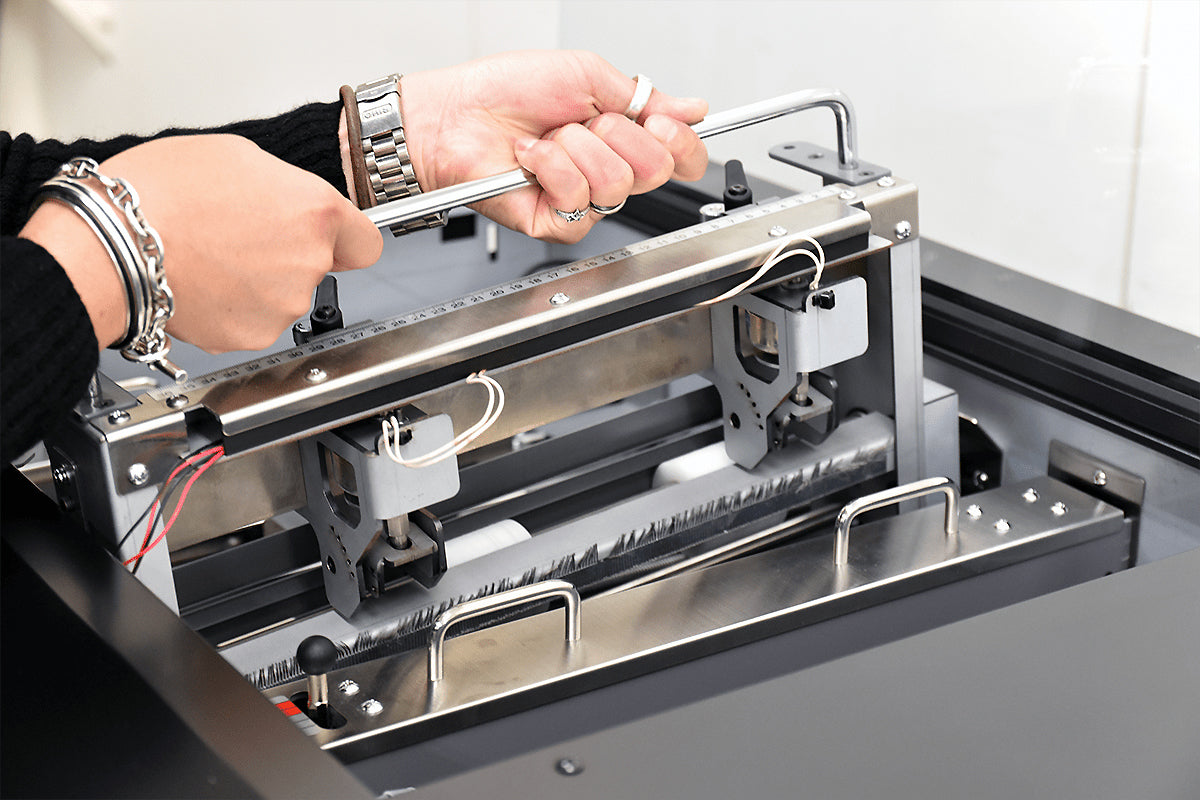

• Cross and Jump Perforation Units to perforate across and along feeding direction
• Sheet skew adjustment and alignment
• Cut mark registration

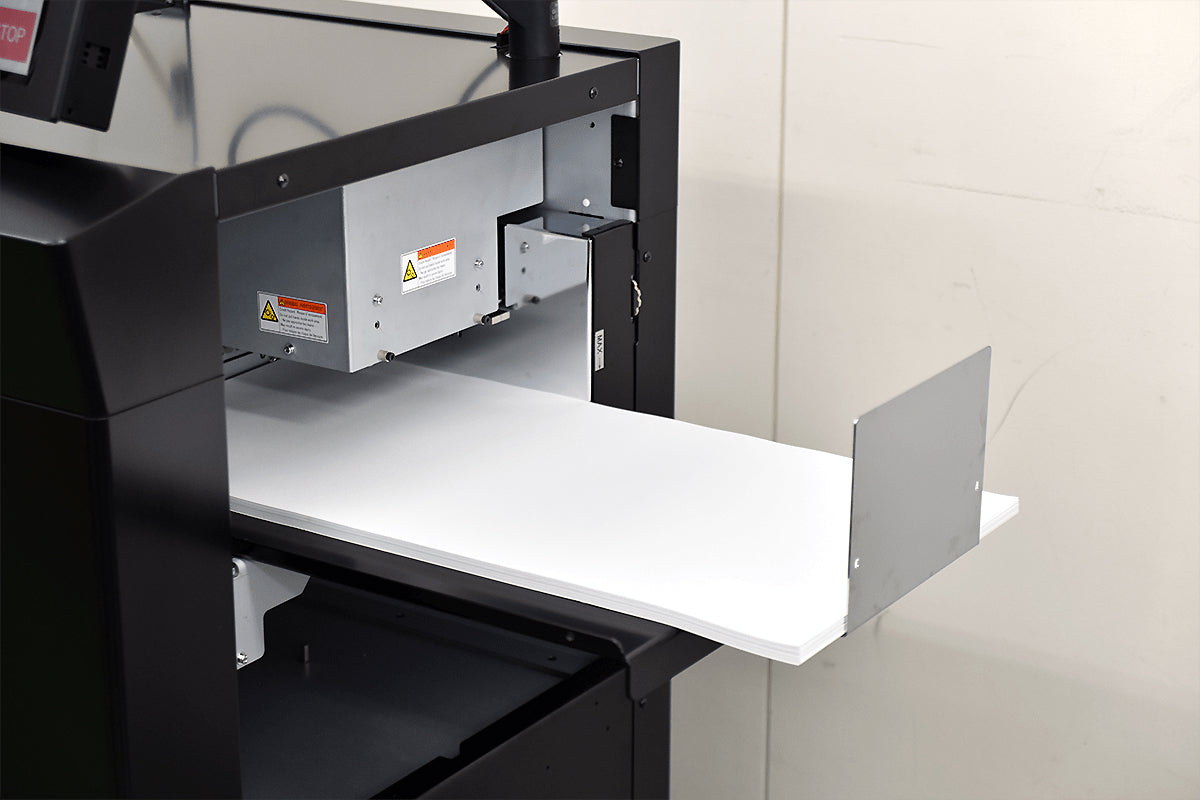

• Expandable Feed Tray that can hold up paper up to 750mm in length with stacking capacity up to 100mm
• Flex mode operation allowing multiple cuts of a particular size from a single sheet along with preferred number of creases
• Detachable rollers to allow easy cleaning and removal of paper jams
• Designed and manufactured in Japan
• One year manufacturer warranty
• Accessories included: Belt Conveyor Delivery, Cross Perforation Unit, Jump Perforation Unit, Barcode Reader, LAN Connector, Lytrod Intellicut Global Software with One Year License, Stacker Wire, Guillotine Ionizer
• Optional extra accessories: Waste Delivery Conveyor, Business Card Slitter Unit, Feed Table Extension, Feeder Ionizer, Standard Delivery Tray

Machine specifications:

• Feedable paper weight: 120gsm (minimum), 400gsm (maximum)
• Feedable paper size: 210mm W x 210mm L (minimum), 370mm W x 750mm L (maximum)
• Minimum finished size: 55mm W x 45mm L

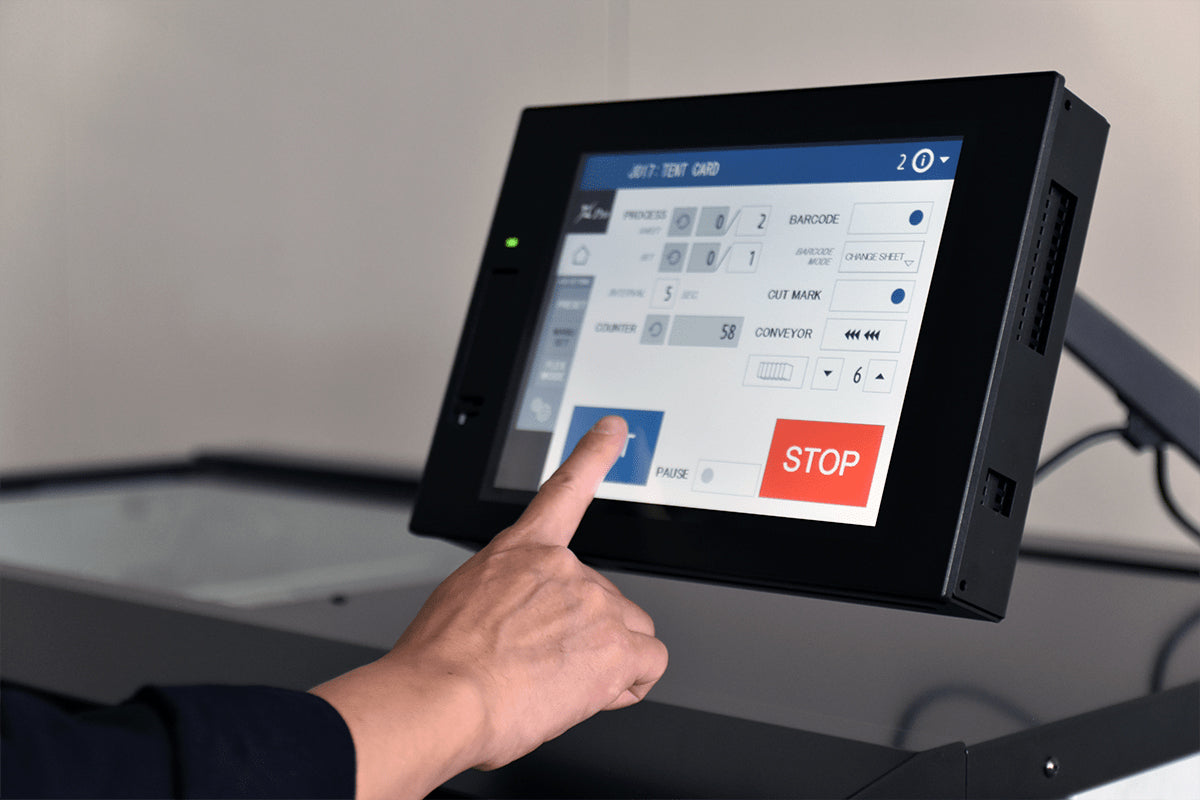

• Operation: 10" built in touch screen display with adjustable arm
• Job memory: 266 preset jobs including 150 customised job memories

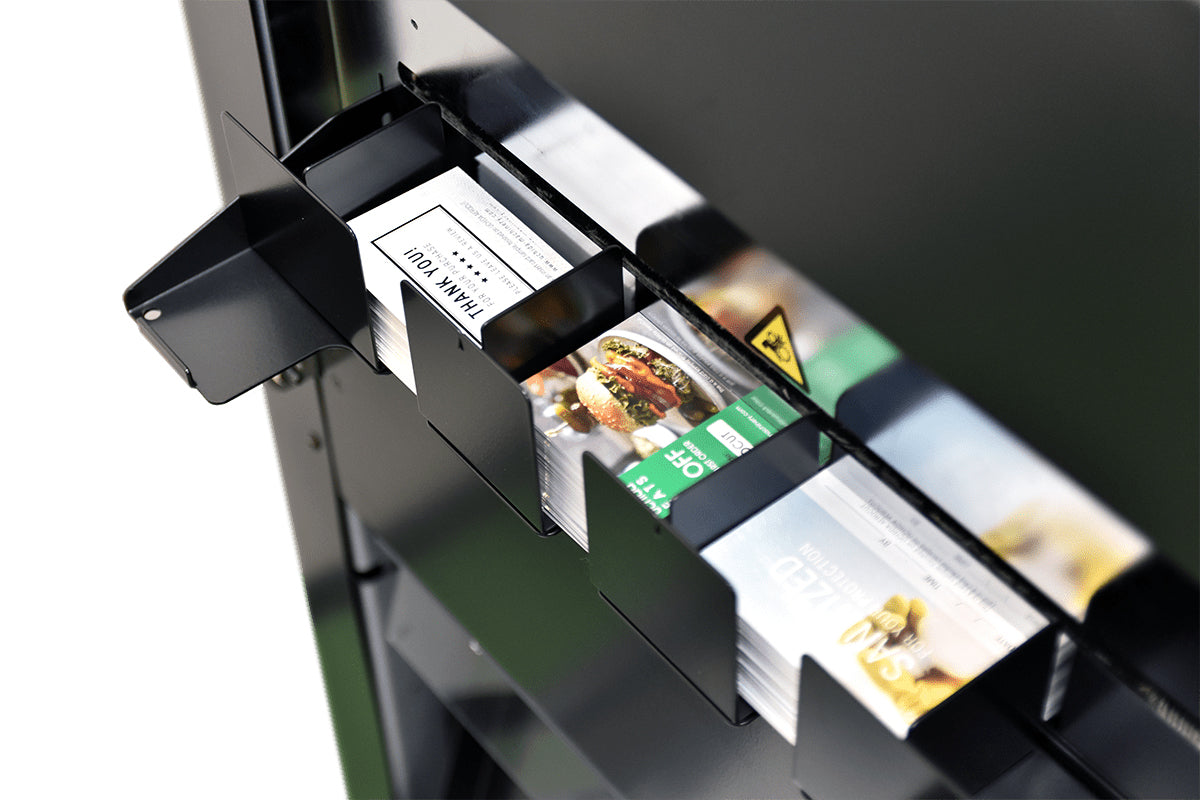

• Speed on SRA3 sheets per minute: 9 x 21up business cards, 14.6 x 8up A6 size, 18.9 x 4up A5 size, 28.3 x A3 size with center crease
• Power supply requirements: AC 100-120V or 200-240V, 50/60Hz
• Power consumption: single phase, 400W
• Dimensions: 1177mm W x 709mm D x 1076mm H
• Footprint: 2397mm W x 709mm D x 1555mm H
• Total weight: 290kg
