• Neschen PhotoLam 650
  • Neschen PhotoLam 650

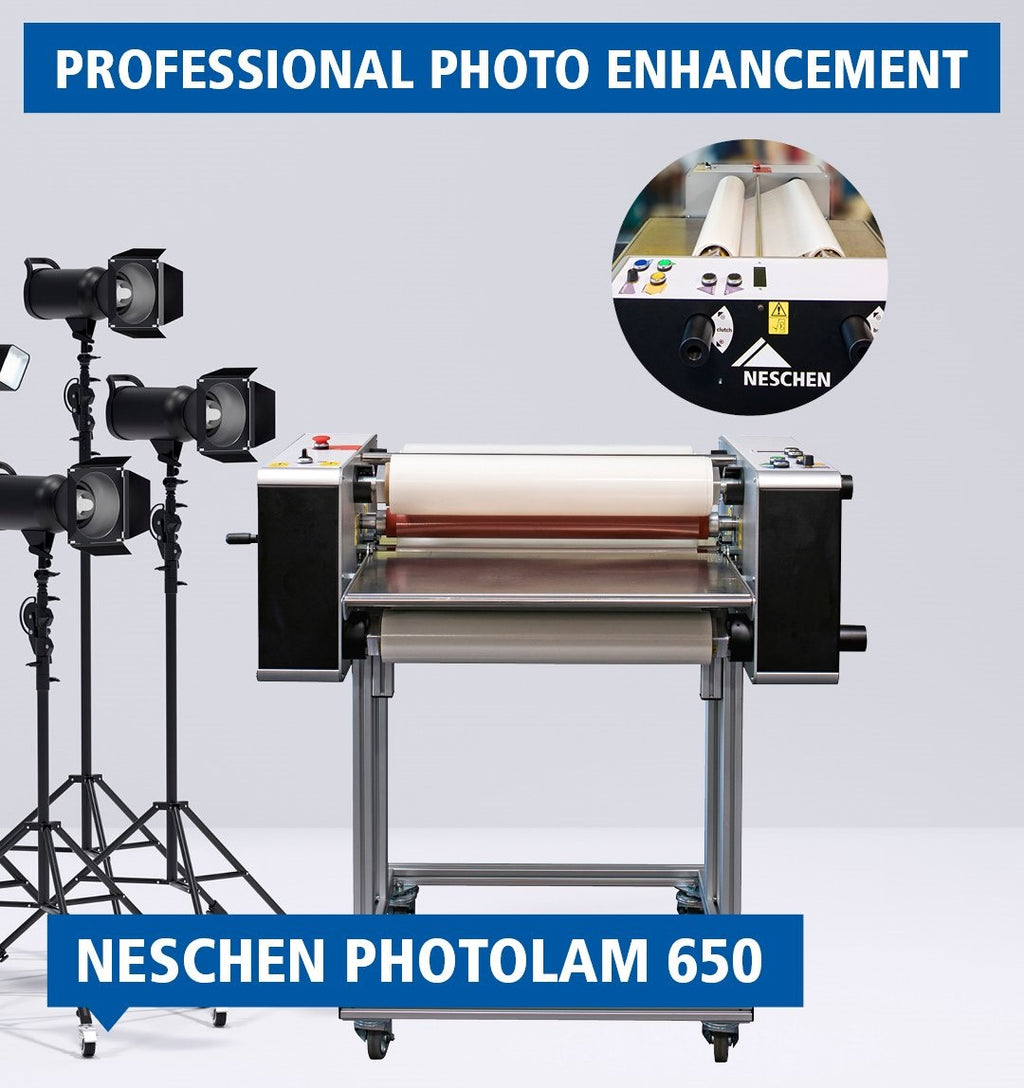

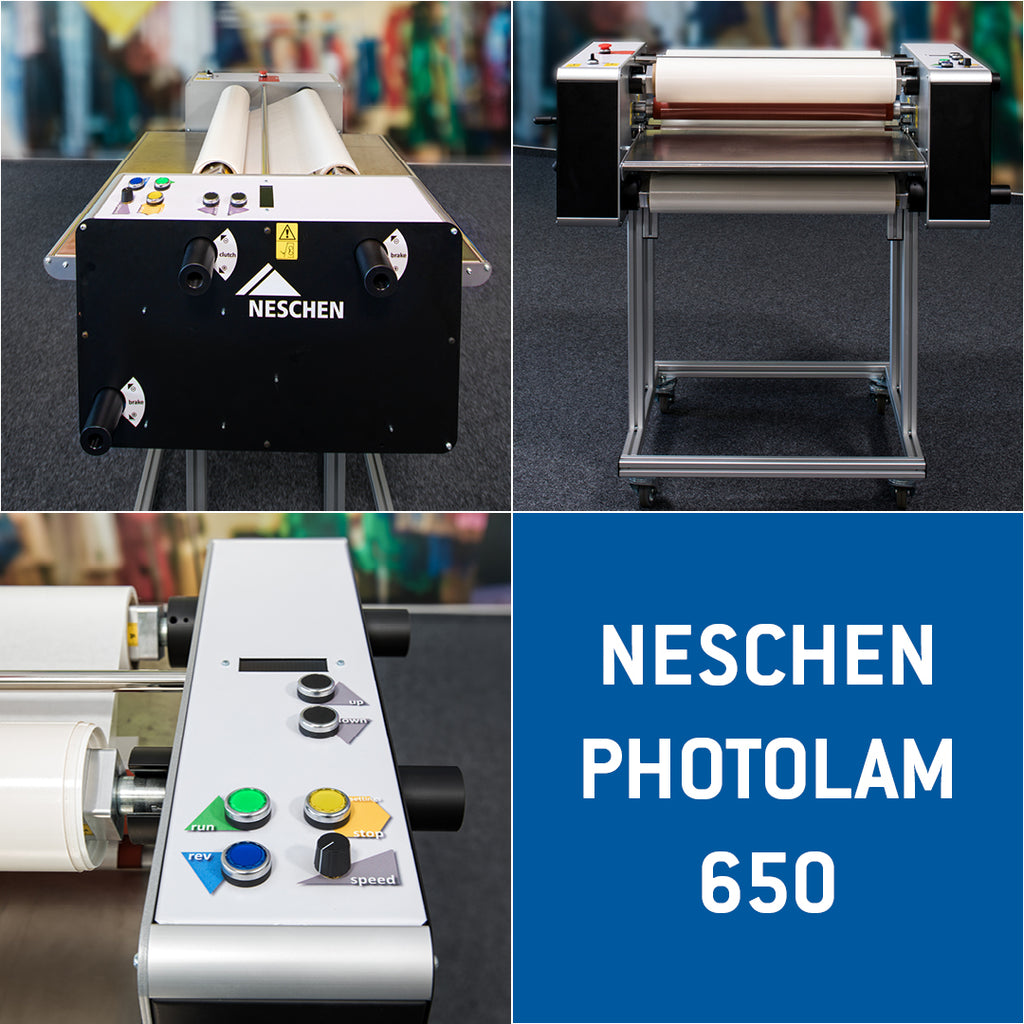

    This laminating device, specially developed for photographers, sets new standards in the field of high-quality photo lamination. The innovative Neschen PhotoLam 650 makes it possible to apply a protective film and a double-sided adhesive mounting film up to a maximum width of 650 mm to photos and prints in just one operation.

    Features included:

    • Max. 650 mm working width
    • Wide range of material and high flexibility
    • Maximum speed of 2 m/min for stable production capacity
    • Mechanical nip adjustment of 20 mm for precise operation
    • High quality roller technology for better processing of soft substrates
    • Outboard brakes for a better control of material unwind
    • Robust model range

    Machine specifications:

    • Maximum laminating width: 650mm
    • Maximum mounting thickness: 20mm
    • Maximum film length: 100m
    • Lifting mode: Electric
    • Maximum roller temperature: 70°C
    • Power supply requirements: 1N/PE 230 V AC/50-60 Hz, 1.600 W, 7 A
    • Dimensions: 1240 mm × 1070 mm × 950 mm
    • Total weight: 115kg


    • Ideal for classical photography
    • For all types of poster and art prints
    • Externally located brakes for film tensioning
    • Ergonomic and user-friendly controls
    • Robust, free-standing model
    • Suitable for use on mezzanines, due to an easily built frame


    Click here to download our Neschen PhotoLam 650 Data Sheet.

    Neschen PhotoLam 650

    Inc. GST: $10,994.50
    Ex. GST: $9,995.00
    Fast Shipping Australia Wide
    Bulk Items may incur additional Freight Costs
    Contact Us on 1300 768 015 for stock availability
