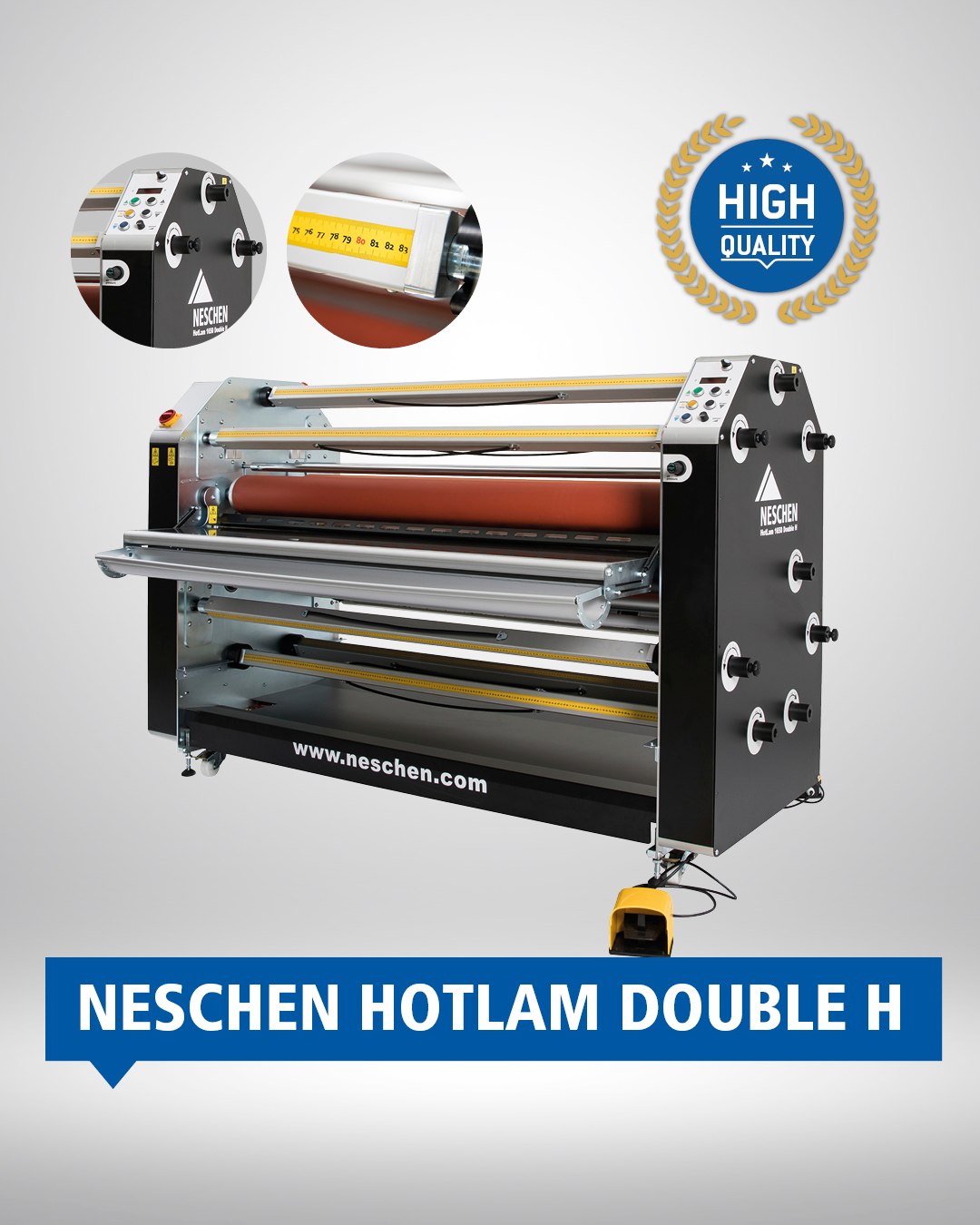

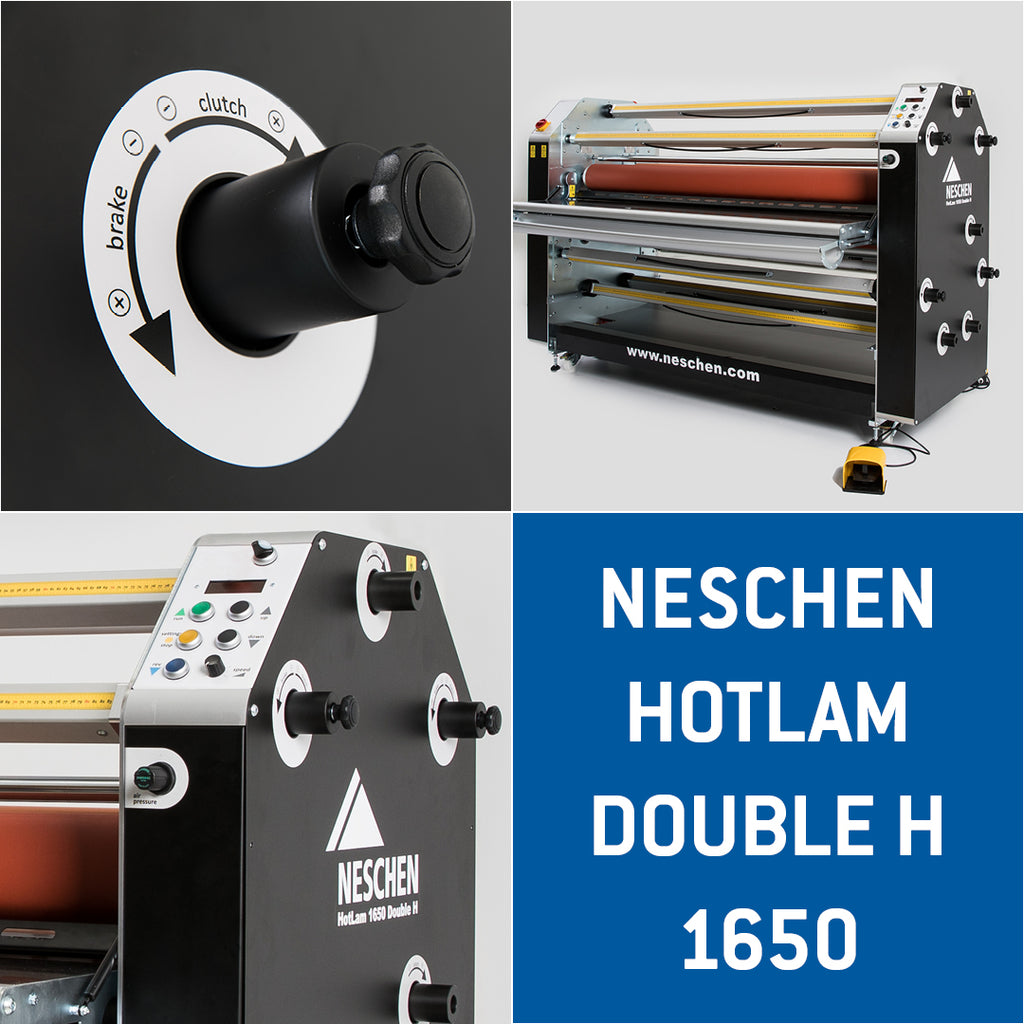

The Neschen HotLam 1650 DoubleH is the perfect
device for experienced professional users. It impresses
with the ability to combine encapsulation of heat activated materials and a high working speed. Increasing the finishing department’s productivity.

Material protrusions can be easily removed with the integrated longitudinal cutting solution to prevent open adhesive tapes. Four of the seven auto-grip shafts are
swing-outs

Features included:

• 2 pairs of main rollers for hot/cold applications
• Four swing-out auto-grip shafts for user-friendly loading
• Pull-out unwinding trough for easy feeding of individual prints of up to 10 m
• Externally located brakes for better adjustment of film tension
• Requires an external compressor for operation
• Two foot switches
• Heated main rollers (160°C) for superb lamination performance
• Variable roller technology for better processing of soft substrates
• The combination shaft (bottom), for roll-to-roll operation
• Flip up infeed tables to facilitate easy setup
• Pull-out trough for easy feeding of single prints up to 10 m
• Additional control panel at the rear of the machine
• Auto grip- and swing out supply shafts for user friendly material feeding
• Roll to roll built in
• Outboard brakes for a better control of material unwind
• Robust model range

Machine specifications:

• Maximum laminating width: 1650mm
• Maximum mounting thickness: 40mm
• Speed: 8 m/ Min
• Maximum film length: 100m
• Maximum roller temperature: 160°C (both rollers)
• Power supply requirements: 3P+N/PE 230 V AC/50-60 Hz; 9.000 W, 16 A
• Dimensions: 2175 mm × 1390 mm × 850 mm
• Total weight: 820kg
• Bulk Items may incur additional Freight Costs
• Additional costs for Installation and Training

Applications:

• Rigid Indoor & Outdoor Display Media
• Flexible Indoor & Outdoor Display Media
• Floor Graphics Media
• Roll-Up Display Media
• Backlit Display Media
• Pop-Up Display Media
• All kinds of Poster- and Art Prints

Click here to download our Neschen HotLam 1650 DoubleH Data Sheet
