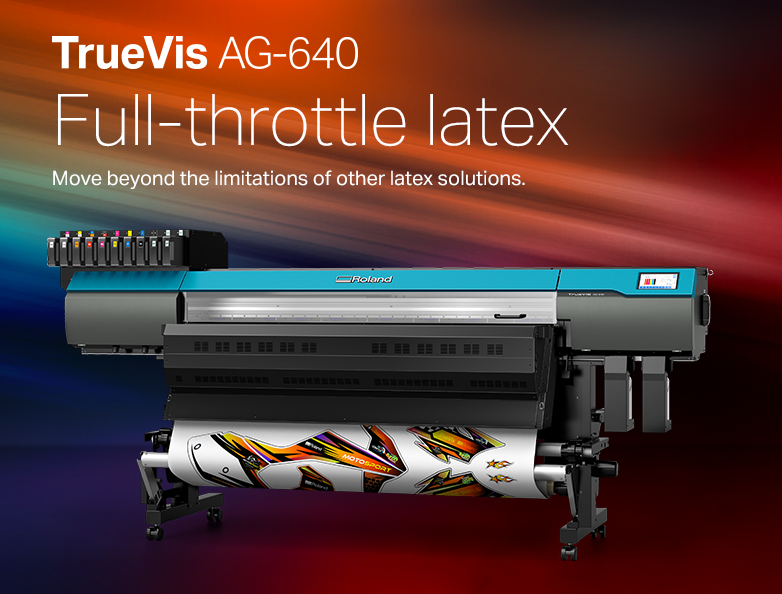

If you've worked with latex printing before, you already know the benefits: reliable, low-odour output that's great for indoor and outdoor work, but often at the cost of higher running expenses, narrower gamut and inconsistent colour performance, with the hassle of managing a separate cutting workflow. The new Roland DG TrueVis AG-640 was built specifically to remove those compromises.
Combining efficient ink use, long-life piezo printhead technology and an expanded colour set, the AG-640 is designed to lower production costs while widening the range of jobs a single 64-inch printer/cutter can handle; from vehicle wraps and window graphics to signage, exhibition work, decals and interior finishes.
Lower-cost latex production
The biggest shift with the AG-640 is how it treats the printhead. Instead of relying on a consumable print-head, where heads wear down quickly and need periodic replacement, adding to the total cost of ownership; the AG-640 uses long-life piezo printheads paired with efficient ink use.
Richer colour and deeper blacks
The AG-640 runs on Roland's TA2 latex ink in 750ml pouches, available in two configurations: a 4-colour dual CMYK + Optimizer set, or a 7-colour set that adds Orange, Red and White to the CMYK + Optimizer base. The extended Orange and Red inks widen the colour gamut and improve reproduction of the tricky in-between tones, especially the brand oranges, skin tones, and saturated reds hat are hardest to hit with a standard CMYK set. With additional improvements in the black ink bringing deeper blacks, the AG-640 is the best fit Latex for brand-critical work where colour accuracy isn't negotiable.
Dense white ink, ready when you need it
White ink is notorious in the industry and is only useful if it behaves when you actually need it. The AG-640's dense white ink supports strong, opaque results on transparent and coloured media (think window graphics, coloured vinyl, and backlit applications) while a zero-waste circulation system keeps the white ink line agitated and ready to fire. That means low maintenance whether the printer is running white ink daily or only drawing on it for occasional jobs, without the settling and clogging issues that can plague white ink channels left idle.
Smoother, more natural output
On the print quality side, the AG-640 is built to deliver crisp fine detail, cleaner gradients and richer blacks, with visibly reduced grain compared to earlier latex output. The result is a finish that better preserves the character of the media it's printed on, which is useful across the AG-640's spread of applications, from close-viewing decals to large-format vehicle graphics viewed at a distance, that is enhanced by its lower than industry standard curing temps enabling more media options than ever before.
Specs-wise, the printer runs a piezo ink-jet system at up to 1,200 dpi, handling media from 355 mm up to 1,625 mm wide and up to 1.0 mm thick (with liner), with a maximum print width of 1,600 mm.
Integrated print-and-cut flexibility
For labels, decals, stickers and short-run graphics, the AG-640 folds contour cutting into the same device; no dedicated cutter required. Cutting speed ranges from 10–300 mm/s with adjustable blade force (30–500 gf). For print shops fielding a steady stream of smaller cut jobs alongside larger print runs, that integration removes a step from the workflow and the need for an additional standalone cutter. If production necessitates an extra cutter or two, Roland’s software is pre-built with registration marks to work with the industry standard machines.
Keeping production moving
Beyond print quality and ink economics, the AG-640 is built to cut down on the small frictions that slow a production day: faster start-up, intelligent curing, and media-saving functions that reduce wasted blank space. It's backed by VersaWorks 7 RIP software for job preparation and colour management, plus the Roland DG Connect app, which lets you monitor device performance and status remotely.
The bottom line
The TrueVis AG-640 brings together lower running costs, an expanded latex colour set, dense and reliable white ink, and integrated print-and-cut capability in one 64-inch printer/cutter. For print professionals looking to take on a wider range of sellable, high-impact work, without adding a second machine or absorbing higher consumable costs, it's a genuine step up from conventional latex systems.
Want to know more about the TrueVis AG-640 or see if it's the right fit for your production line? Get in touch with the team at Total Image Supplies on 1300 768 015 for all of your Roland DG Printers, Inks, Supplies and Service! (or shoot us a message here)
