Full-throttle Latex - Print & Cut!

Move beyond the limits of traditional latex, with the world's first Latex printer/cutter.

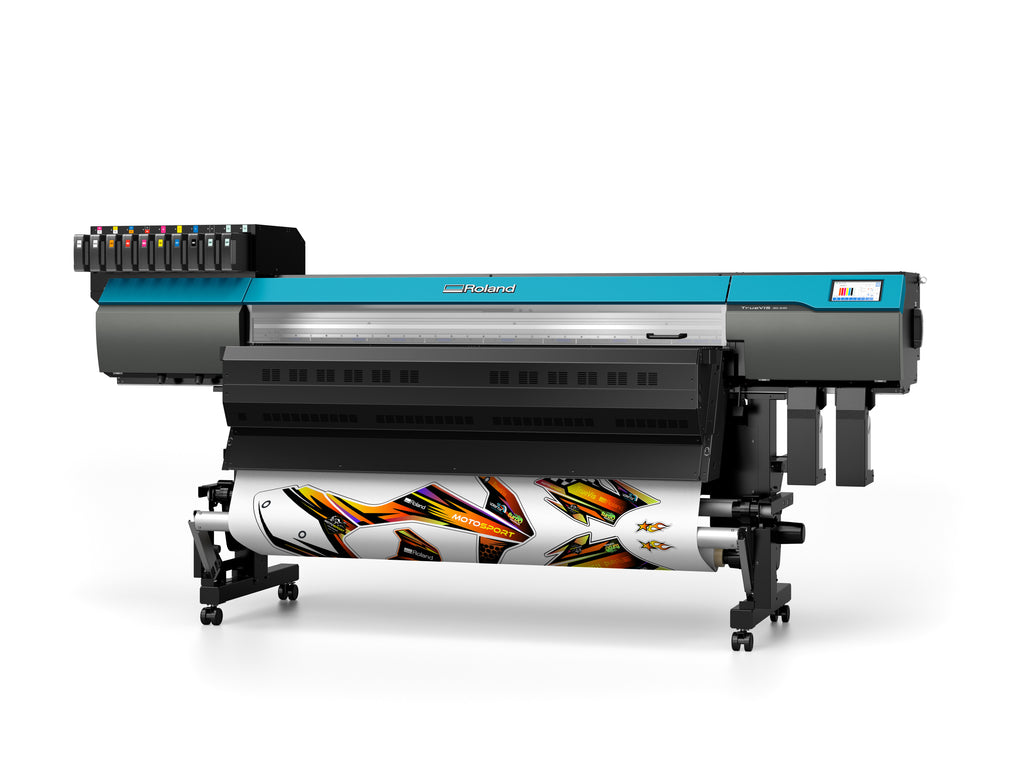

The TrueVis AG-640 gives latex users a stronger reason to switch. Combining lower running costs, smoother output, expanded colour, dense white ink and integrated print-and-cut production, it helps print professionals move beyond existing latex limitations and take on more profitable work with confidence.

Features & Benefits:

Latex Printer / Cutter
VesaWorks 7 RIP Software
Premium Latex Inks
Roland DG Connect
Roland DG Care
Take control of everyday latex running costs with efficient ink use and long-life variable-dot piezo printheads
Create vivid, brand-critical graphics with improved CMYK plus Orange and Red inks
Produce high-opacity white on transparent and coloured media with low-maintenance circulation
Achieve high-quality output with smoother gradients, high-density black and a natural media finish
Keep production moving with faster start-up, intelligent curing and media-saving functions
Add flexibility for short-run labels, decals, stickers and contour-cut graphics with integrated print and cut
Applications: From vehicle graphics and window displays to signage, exhibitions, decals and interiors, it gives print professionals more ways to turn everyday latex production into sell-able, high-impact work

Printer Specifications:

Printing method: Piezo Ink-Jet Method
Dimensions: 3,004 mm × 866 mm × 1,412 mm
Weight: 268 kg
Media Width: 355 to 1,625 mm (13.98 to 63.97 in.)
Core diameter: 76.2 mm (3 in.) or 50.8 mm (2 in.)
Ink Type: TA2 Ink 750 ml pouch
Colours - Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) and Optimizer Four colours (Cyan, Magenta, Yellow, and Black) and Optimizer
Printing & Cutting width Max. 1,600 mm (62.99 in.)
Cutting Speed: 10 to 300 mm/s (0.39 to 11.8 in./s)
Resolution Max. 1,200 dpi
Power-saving function: Automatic sleep feature.
1 Year Heads N' All Warranty.
Included items: Dedicated stand, power cords, dryers, media take-up unit, media holders, separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.
