A New Dimension in Print and Cut.

Combining the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, the LG series adds a new dimension to graphics printing.

Features & Benefits:

• High speed printing
• One pass multilayer printing
• Simple media calibration
• A variety of available ink configurations expand your capabilities to include rich colours and interesting spot UV effects
• Touch screen control
• One-touch auto calibration
• Intergrated take-up unit
• Extended Table for semi rigid card
• High-definition output
• Speciality printing for textures and effects
• Broad media compatibility
• High density white ink
• Fast drying print for quick turnaround and finishing
• Print Applications: Backlit Graphics, Retail Graphics, Windows and Walls, Stickers and Labels, Signage, Packaging Prototypes, POS and Display, Specialised Art Prints.


Printer Specifications:

• Printing method: Piezo inkjet method
• Ink: Eight Colours (Cyan, Magenta, Yellow, Black, Orange, Red, White, Gloss) and, Primer
• 750 ml pouch (ECO-UV)
• Thickness: Max. 1.0 mm (39.3 mil) with liner, for printing
  Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
• Media Roll outer diameter: Max. 250 mm (9.8 in.)
• Core diameter: 3 in. (76.2 mm) or 2 in. (50.8 mm)
• Resolution: Max. 1,200 dpi
• Cut Speed: 10 to 300 mm/s (0.39 to 11.8 in./s)
• RIP Included: VersaWorks
• 7 in. touchscreen display
• 1 Year Heads N' All Warranty

LG-300:

• Size: 30 inch
• Dimensions: 2,038 mm × 748 mm × 1,412 mm (80.3 in. x 29.5 in. x 55.6 in.)

• Media Width: 182 to 762 mm (7.2 to 30 in.)
• Roll weight: Max. 30 kg (66 lb.)

LG-540:

• Size: 54 inch
• Dimensions: 2,648 mm × 748 mm × 1,412 mm (104.3 in. x 29.5 in. x 55.6 in.)

• Media Width: 295 to 1,371 mm (11.7 to 54 in.)
• Roll weight: Max. 35 kg (77 lb.)

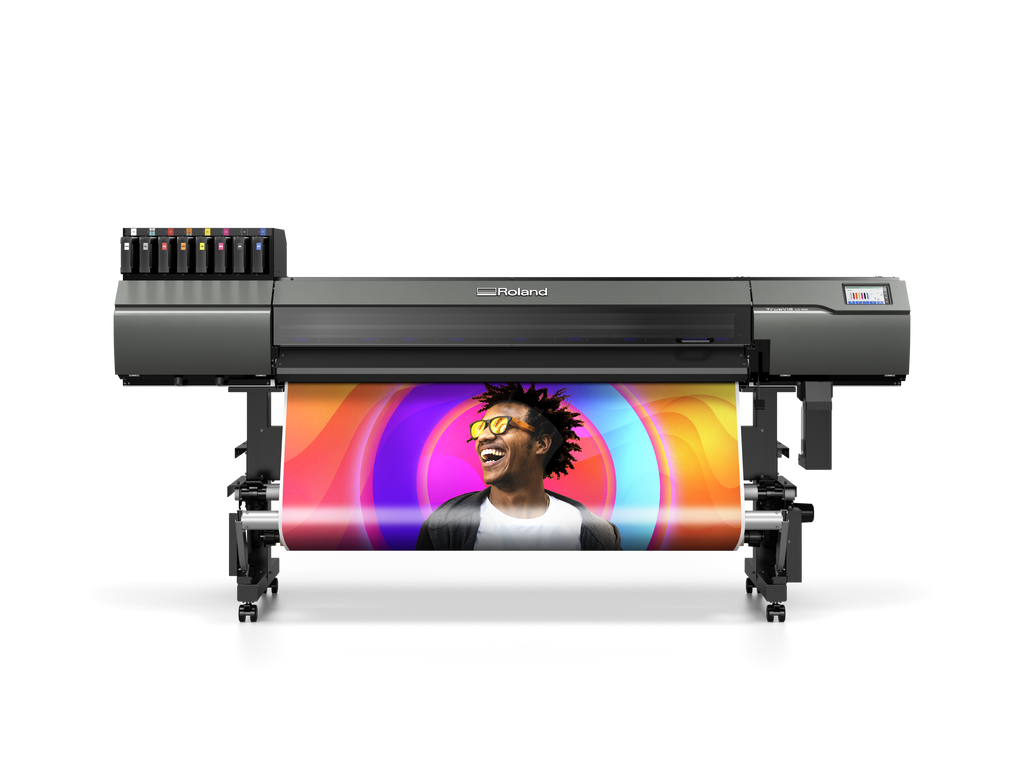

LG-640:

• Size: 64 inch
• Dimensions: 2,902 mm × 748 mm × 1,412 mm (114.3 in. x 29.5 in. x 55.6 in.)

• Media Width: 335 to 1,625 mm (13.2 to 64 in.)
• Roll weight: Max. 45 kg (99 lb.)
