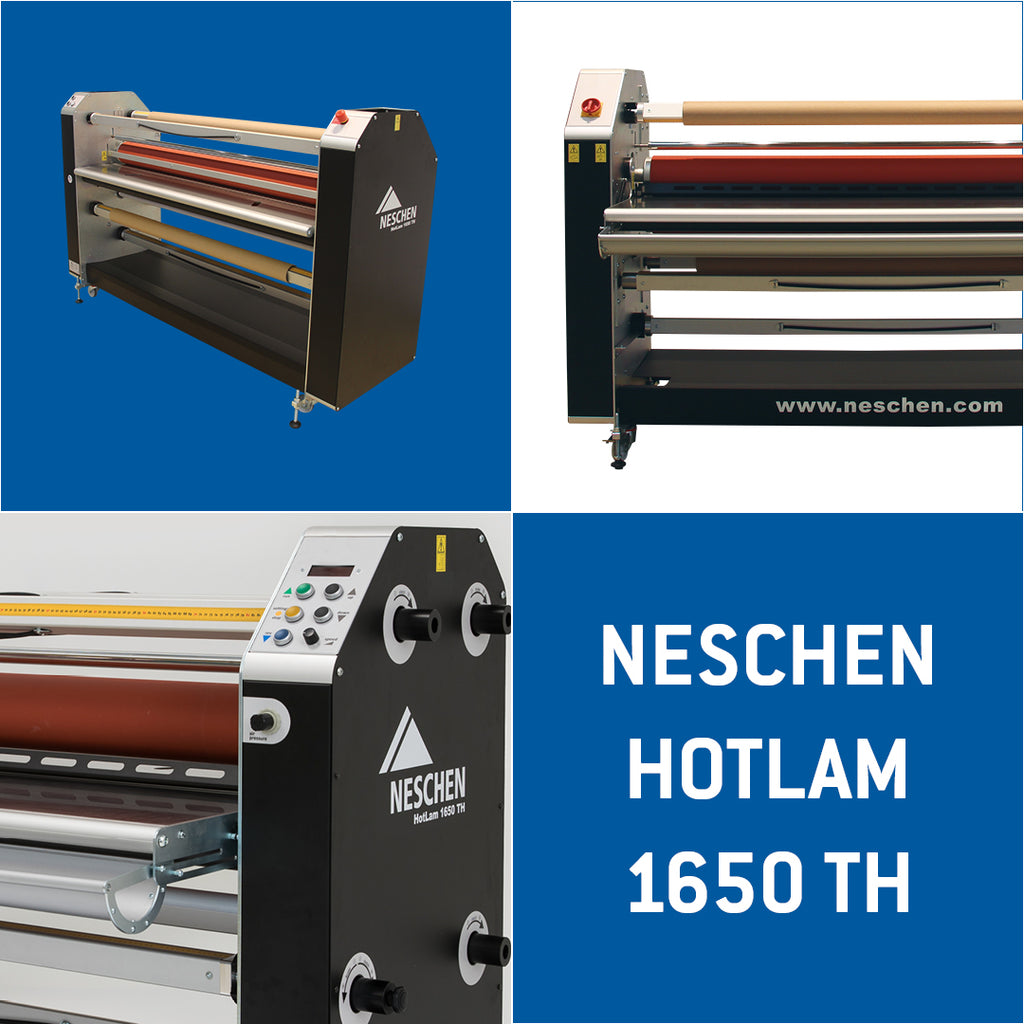

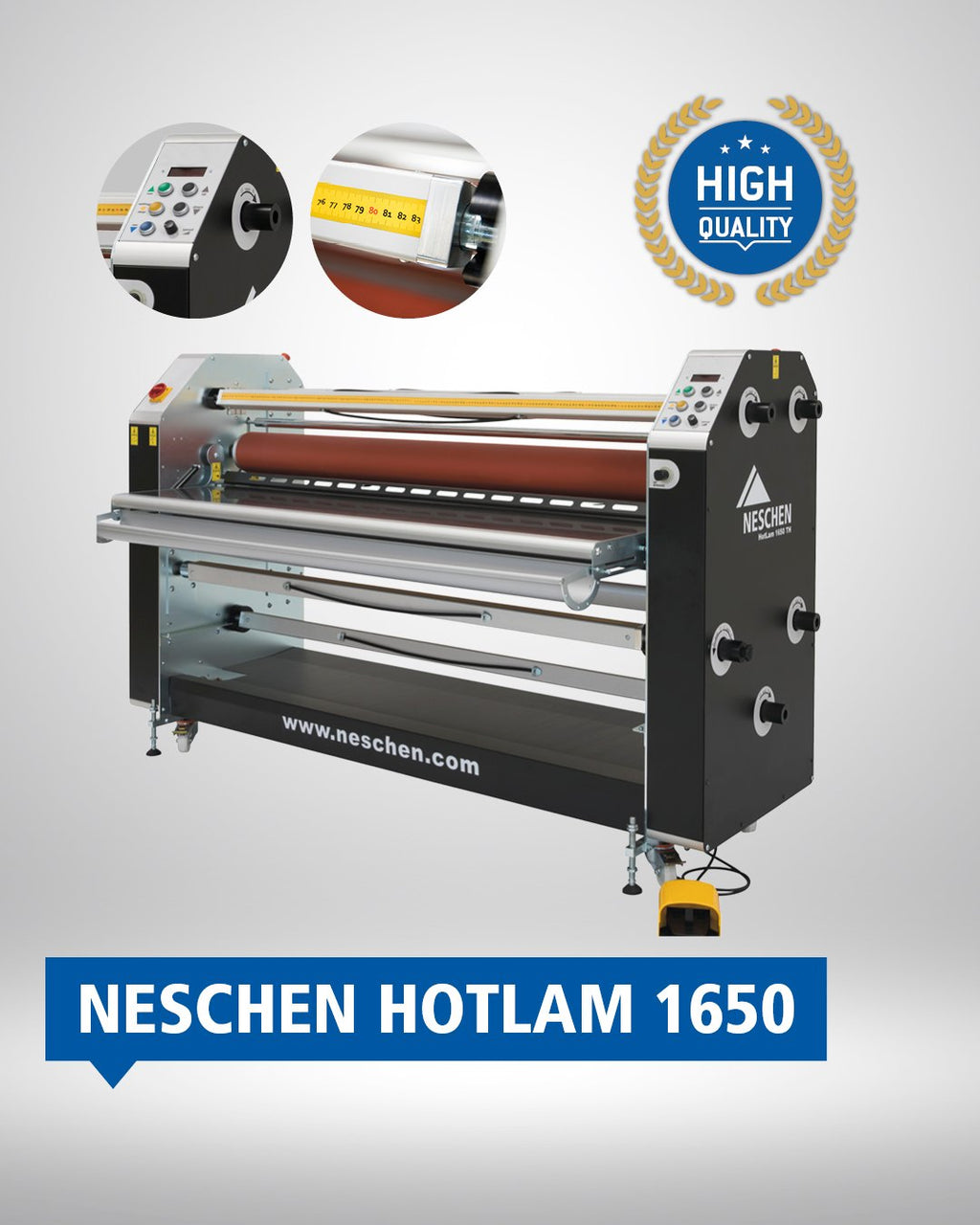

• Neschen HotLam 1650 TH
  • Neschen HotLam 1650 TH

The Neschen HotLam 1650 TH with its variable
pressure and speed adjustment is aimed at both new
and experienced users. A sophisticated roller concept
with high contact roller pressure. At 12 meters per
minute the HotLam 1650 produces excellent
results – fast. Auto-grip shafts allow for easy material
handling. The longitudinal cutting unit brings your
product to the exact end format.

Features included:

  • Manual air pressure and speed adjustment for
    maximum flexibility
  • Swing-out auto-grip shafts for user-friendly loading
  • Externally located brakes for better adjustment of film tension
  • Integrated compressor and role to role functionality
  • Foldable feed table for easy setup
  • Maximum speed of 12 m/min for increased production capacity
  • Electrical nip adjustment of 40 mm for precise operation
  • Heated top roller (160°C) for superb lamination performance
  • Variable roller technology for better processing of soft substrates
  • The combination shaft (bottom), for roll-to-roll operation
  • Additional control panel at the rear of the machine
  • Optional: 150 mm core adapter, infeed-table add-on pack


Machine specifications:

  • Maximum laminating width: 1650mm
  • Maximum mounting thickness: 40mm
  • Speed: 12 m/ Min
  • Maximum film length: 100m
  • Maximum roller temperature: 160°C
  • Power supply requirements: 1N/PE 230 V AC/50-60 Hz; 3.400 W, 16 A
  • Dimensions: 2175 mm × 1320 mm × 650 mm
  • Total weight: 490kg
  • Bulk Items may incur additional Freight Costs
  • Additional costs for Installation and Training


  • Rigid Indoor & Outdoor Display Media
  • Flexible Indoor & Outdoor Display Media
  • Floor Graphics Media
  • Roll-Up Display Media
  • Backlit Display Media
  • Pop-Up Display Media
  • All kinds of Poster- and Art Prints

Click here to download our Neschen HotLam 1650 TH Data Sheet

Neschen HotLam 1650 TH

Inc. GST: $35,194.50
Ex. GST: $31,995.00
