High Productivity, Print Quality and User Convenience

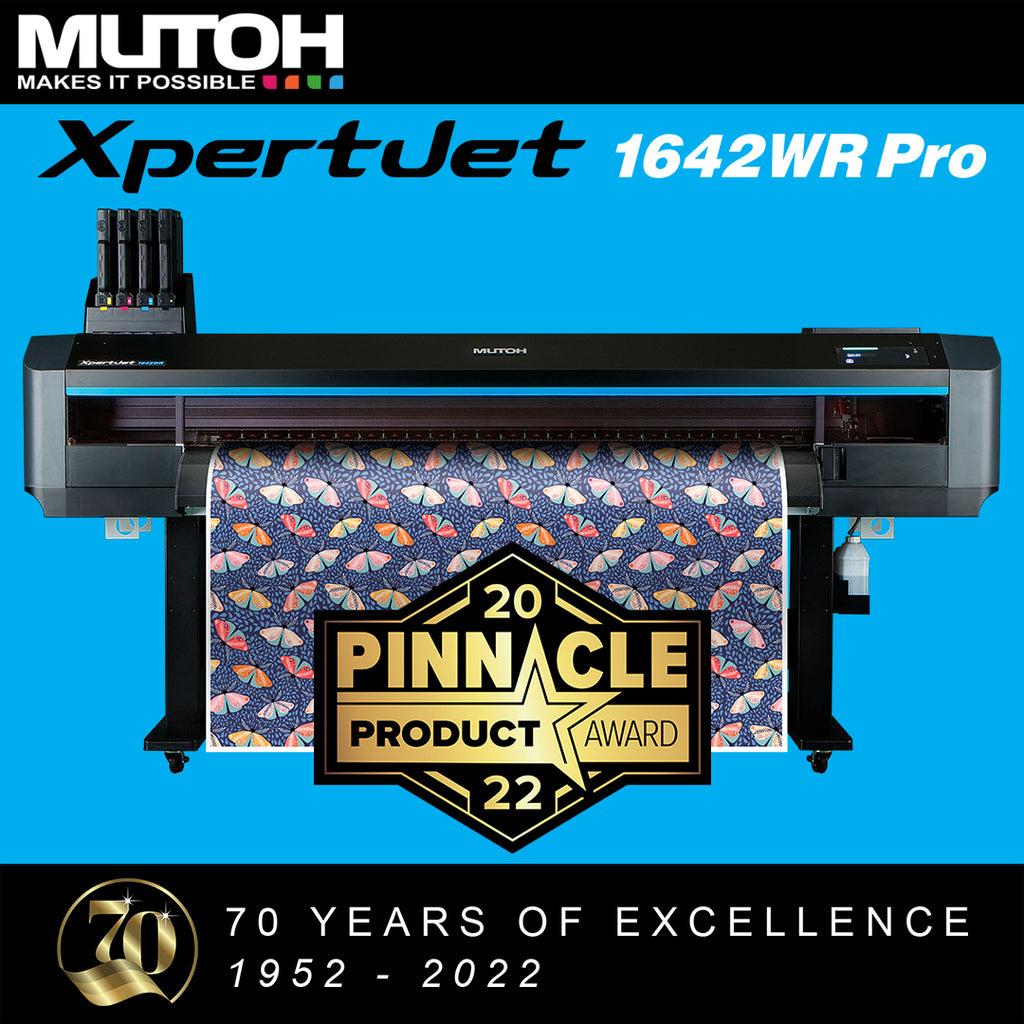

MUTOH’ s new XpertJet 1642WR Pro is a 64” - 1625mm wide water-based inkjet printer with a new platform that inherits the properties of the XpertJet series. Two new extra-wide print heads achieve high productivity with incredible print speed and the highest print quality thanks to best-in-class dot placement accuracy. Various new features provide improved user convenience.

The MUTOH original dye-sublimation ink provides superior media transfer and achieves high density colour with less ink consumption. The fast ink drying enables printings on thinner/lighter transfer papers, with excellent jetting and colour stability to support prolong printing.

The XPJ-1642WR Pro delivers high-quality graphics for a wide range of applications such as trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms, and more, and brings the best "Made in Japan Quality" to the various markets

Print application examples:

Sports Uniforms
Custom Merchandise
Signage & Banners
Custom Interior design - Curtains, Cushions etc
Apparel
Trade Show Display Graphics

Printer specifications:

Number of print heads: Two (Dual) Staggered
Head height: Four-level adjustment of 1.5mm, 2.0mm, 2.5mm, and 4mm to allow for optimal printing clearance.
Print speed: 15m² per hour.
Printing method: on-demand micro piezo drive system
RIP software: VerteLith RIP Software
Maximum printing width: 1615mm
Maximum media width: 1625mm
Media core size: 50mm (2 inch) or 75mm (3 inch)

Print resolution: 1200dpi maximum
Power supply requirements: AC 200-240V (voltage), 50Hz (frequency)
Environment condition for printer operation: 22-30°C (temperature), 40-60% (humidity), no condensation
Dimensions: Main body:2770mm x 895mm x 1428mm -when installing 2200ml ink bag cases:1712mm)
Total weight: 137kg - Stand 32kg
Engineered & manufactured in Japan
