Witness the evolution of Mutoh’s award-winning small format flatbeds with the NEW Mutoh XpertJet 1462UF UV-LED Flatbed Printer. The 1462UF demolishes the competition with unmatched performance printing ADA compliant braille, while still able to deliver exceptional image quality and efficiency for general signage and print applications.

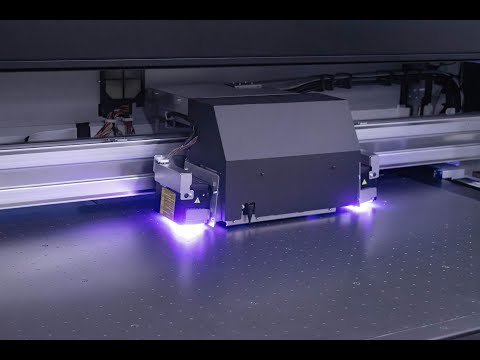

Dual Staggered Print Heads enable high-speed 2-layer printing with CMYK plus White and Varnish options.
Multi-Zone Vacuum Bed ensures secure material placement and precise printing.
Dual 4” UV-LED lamps for rapid curing and extended under the light time.
Automatic laser height detection for objects up to 150mm thick
Crisp 1440x1440 dpi resolution
Fixed Table with automatic height adjusted moving gantry
Print Applications: Braille Signage, General Signage, Industrial Signage, Packaging, General and Wayfinding Signage, Promotional Products, Home Décor and Acrylic Prints, Homewares,
Ideal for: Everything under 150mm thick

Table Print Size: 1420mm x 700mm
Print Thickness: Up to 150mm
Print Heads: Dual staggered for enhanced productivity
UV-LED Lamps: Two 4" lamps for quick curing
Head Height: Automatically Laser Adjusted
Ink Configuration: CMYK + White + Varnish
Ink: UH21 Rigid UV-LED Ink 800ml bags (500ml White)
RIP Software: Mutoh Genuine RIP Software VerteLith™
Print Resolution: Up to 1440x1440 dpi
Power Requirements: AC 100-120V ±10% / 200-240V ±10%, 50/60Hz ±1Hz
Environmental Conditions: Operating temperature 20-32°C, humidity 40-60% (no condensation)
Dimensions: 2770mm (W) x 1459mm (D) x 1339mm (H)
Total Weight: 500kg
Engineered & manufactured in Japan.
1 Year Labour Warranty
3 Year Parts Warranty
