Precision in Every Play.

Developed from the renowned TrueVIS platform, the evolved VG4 Series delivers premium, efficient production at lower cost, with new TR3 inks enhancing colour, detail, and white performance. In addition, smarter control and direct print functionality positions the VG4 as a leading large format eco-solvent printer cutter for stable, long-run, daily production.

Features & Benefits:

The most advanced generation of TrueVis
The smartest way to produce outstanding output
TR3 ink flexibility and expanded color capability
Refined image quality
Multiple workflow innovations
VersaWorks 7 RIP software
Consistent results
Long run efficiency
Roland DG Australia. 3 Year Warranty 'Heads & ALL'
Lower running costs and sustainability
Print Applications: Professional Signs, Banners, and Promotions. Professional Labels and Packaging. High-Quality Window Graphics. Custom Stickers and Decals. Custom Interiors and Wall Décor. Vehicle Graphics for Fleet and Consumer. Customised Apparel. Floor Graphics.

Printer Specifications:

VG4-640, VG4-540:

Printing method: Piezo inkjet method
Thickness: Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
Media Roll outer diameter: Max. 250 mm (9.84 in.)
Core diameter: 3 in. (76.2 mm) or 2 in. (50.8 mm)

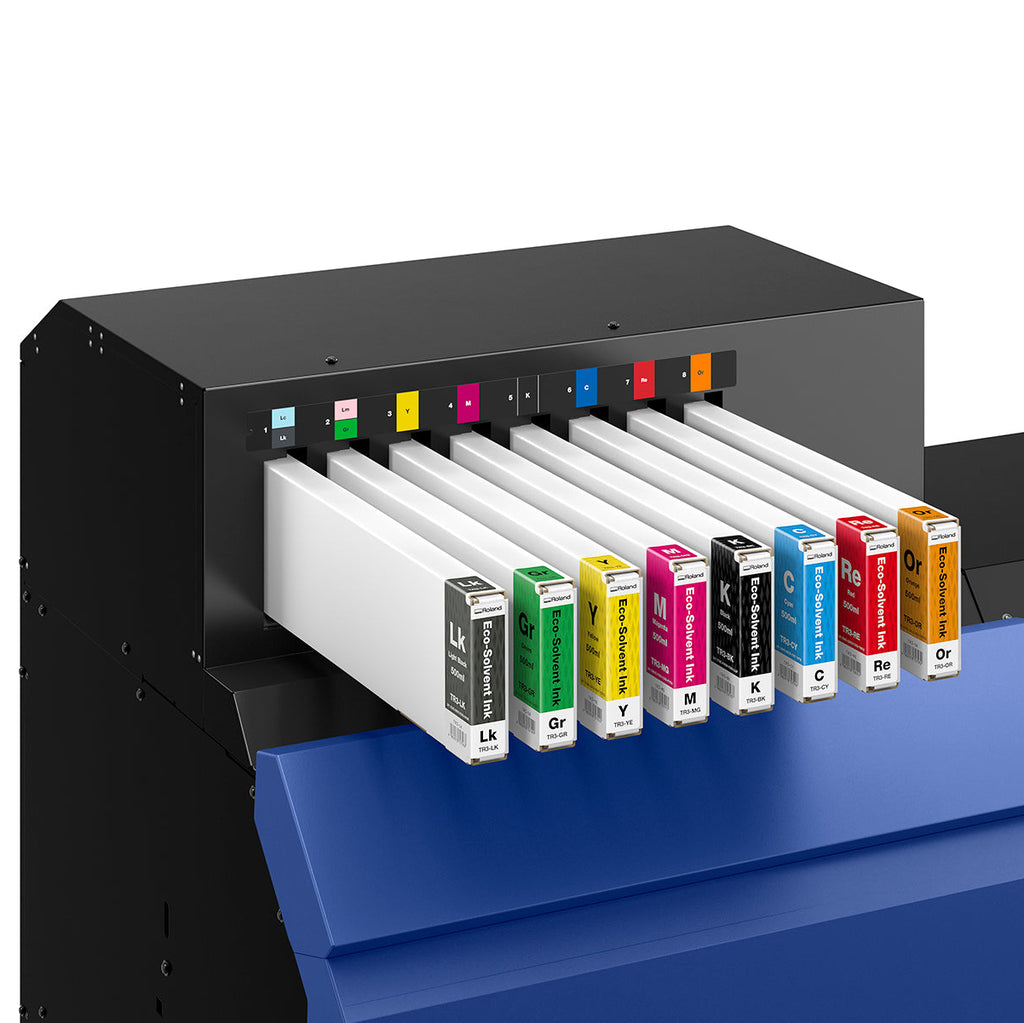

Ink: Eco-Solvent Ink (TR3) 500 ml cartridge (only white 220 ml)
Resolution: Max. 1,800 dpi
Cutting Speed: 10 to 300 mm/s (0.39 to 11.8 in/s)
Automatic sleep feature
Included items: Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquidbottle for maintenance, drain bottle, User Manual, software (VersaWorks, Roland DG Connect), etc.

VG4-540:

Size: 54 inch
Dimensions: 2,632 mm × 748 mm × 1,415 mm(103.62 in. x 29.45 in. x 55.71 in.)
Media Width: 295 to 1,371 mm (11.7 to 54 in.)
Cutting Width: Max. 1,346 mm (52.9 in.)
Roll weight: 182 kg (402 lb.)

VG4-640:

Size: 64 inch
Dimensions: 2,886 mm × 748 mm × 1,415 mm(113.62 in. x 29.45 in. x 55.71 in.)
Media Width: 335 to 1,625 mm (13.2 to 64 in.)
Cutting Width: Max. 1,600 mm (62.9 in.)
Roll weight: 189 kg (417 lb.)
